2015-05-25

Thicknessing the top


20150525
#7 top was thicknessed the same way as the other 2.
The final weight came to be about 133.3g which is similar to #9
This is not surprising as I think they are from the same or similar trees
After the top was thicknessed I remove the sound hole and measure the density of the wood.
Actually this is not really a very accurate way of measuring the density.
It would be more accurate to measure when it was still square as the margin for error is larger.
With such a small sample, any variance will cause a larger error.



Cutting out the sound hole after thicknessing


Weight of top 133.3g

2015-05-18

Preparing for bracing


20150313
Normally this section will come under bracing
Since I am doing 3 guitars at one go I thought I just lump them all under this post.
I joint up the donut sound hole reinforcement using the spruce cut-off from the top.
I have enougth to make 4 actually.
I find the cam-clamp very useful in doing this type of ad-hoc non-critical joints
After this I would need to split some braces.



Shotting the edges of the donut


Finished jointing one pair.


3 more pair to go!


20150320
After all the blanks are jointed, I began to cut out the disc.
But before that I had to drill the center hole.
I am using my favourite self-made scribe.



Drill the center hole.


Scribe and cut out the disc donut.


Trying to split some bracing. I should get an axe (a proper wedge)


20150516
I split somemore brace and plane them down to shape.
I had to go to the staircase to split and eventually ground floor as it's night time and the hammering noise will be a disturbance to the lower floors...
I split 2 spruce one is Lutz and one is Englemann; the Lutz spruce definitely feels stiffer than the Englemann.
So I will be using the Lutz for the fan bracing and Englemann for the UTB and LTB.



Splitting the bracing blank.


After splitting the brace blank.


Sizing up the braces


All done up to the right width.


20150518
After cutting out the brace blank, I lay them out on a board.
It was raining these few days so I delayed the bracing gluing due to the rise in RH.



#9 bracing pattern


Torres bracing pattern, I might change to Simplicio again though.


One possible design I had in mind, a fan lattice. Traditional and yet modern haha.

2015-05-16

Inlay the rosette


20150313
I began to inlay the rosette for the #8.
Actually the steps is similar to #9
I scribed the ring and carved out the channel using the router plane.
Fill the channel with white glue and then glue and clamped it.
At this stage the fit isn't quite as important.
The borders will be covered by purfling.



Glue the rosette


Clamp it


20150320
I trim down the rosette.



Plane down the rosette


Planing done


20150325
I also began to inlay the purfling for this guitar #8.
The steps is similar to the #9 which I did earlier.



Routing the purfling channel


Channel routed


Inlay the rosette


Tape it down


Looks nice.


20150402
I inlay the outer purflin.
Before inlaying I would do a dry run to ensure the fit is good.
For such precise stuff it's better to take it slow and do as much dry fitting as required.
No use to rush for it.



Chisel the outer purfling channel.


Dry fitting


Apply glue


Start to inlay the purfling.


Tape it down.


20150403

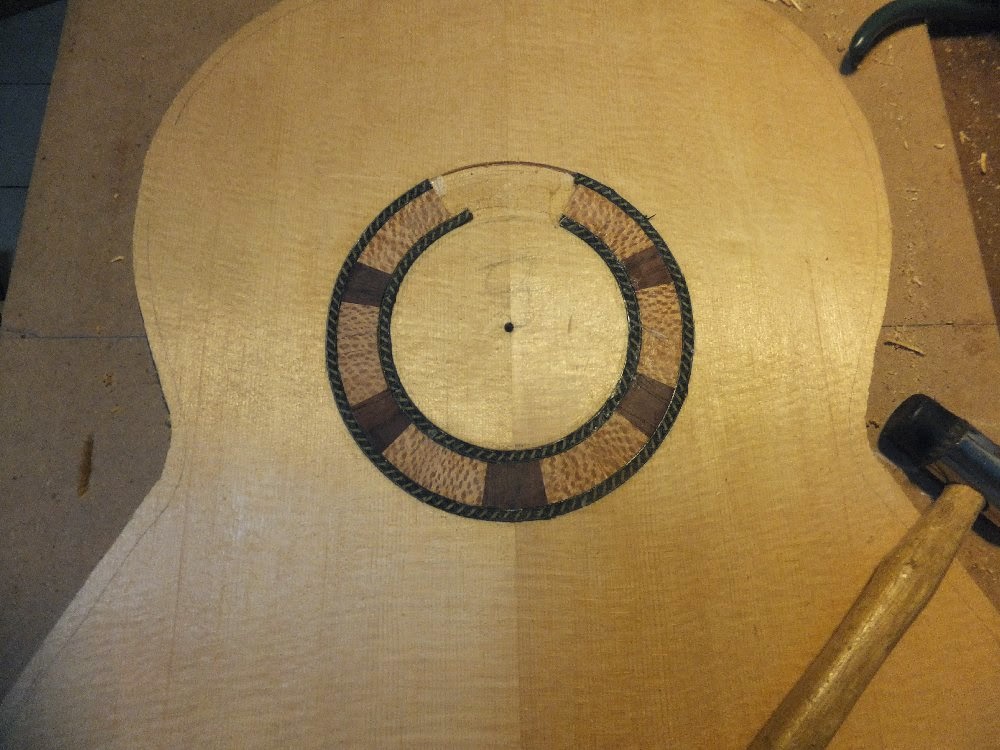

The rosette is done.
The inlay work looks quite ok.
Now have to sand and clean up the top



Rosette done

Now the 2nd part of the story is #7 inlay of the rosette.
The steps are similar to previous.
But this time I cheated a little and use the dremel to route the outer arch.
But I notice the cut using the manual cutter is more accurate and precise.



After routing with the RTX (dremel), I clean up the channel with router plane.


Preparing to glue the rosette


Apply glue


Inlay and clamped


20150404
I uncoverd the clamp and check the rosette looks pretty ok.
After that I shaved down the thick rosette and try to see which purfling fits better.



Plane down the rosette


After planing


Check the purfling


20150423
I patched the uncovered segment for the #8 with the spare spruce cut off.
As I do not have a piece big enough to cover the entire section I use 2 piece instead.
One bigger piece which will cover the centre seam and one smaller piece to fill up the rest of the channel.
The piece was first sawn and then chisel to fit the channel.



Marked out the pieces


Chisel to fit the channel


Apply glue


Glue in the pieces and tape it down.

After that I work on the inner purfling for the #7.
It's pretty straight forward.



Route the channel.


Dry fit to check the channel size.


Apply glue


Glue in the purfling and tape it.


20150430
The last bit of the purfling is inlayed.



Cleaning up the channel after routing


Dry fitting the purfling


Glued in the purfling


20150516
I patch up the rosette channel and plane them down.



Marking the shape of the patch


Planing down the patch


Done.
