2015-08-20

New Lutz Spruce bracing!


20150820
I ordered some more new Lutz spruce bracing and 2 new tops from High Mountain Tonewood.
Both the tops' tap tone are really good!
Now I have more bracing blank to work with since I usually split the braces so there are a lot more wastage.
The fan braces will need the higher quality stuff while the LTB and UTB I will use the lighter Englemann as they are more massive.



Lutz spruce wrapped nicely in paper


The Lutz spruce top

2015-08-19

Bracing the top


20150720

Bracing is perhaps the more enjoyable part of the build.
First I lightly sand the top on the gluing side.
Then I draw the outline of the template onto the top at the bracing side.
This is followed by the bracing marking.
For this tops I am using my bracing which is derived from Bouchet.

After the bracing markings are done, the I started to glue in the bracing.
For the brace blanks I have already prepared and cut previously.

Before that I took some time to assemble my go-bar deck.
I did some modifications to the upper deck which block some holes from the threaded rod so I have to enlarge the holes a bit.
But that was done pretty quick.
After the go-bar is set up, I began to heat up the hide and the gluing process.

First I glue in the donut sound hole reinforcement.
I had to cut out the inner circle first and lightly sand the piece.
Following that I cut the braces to size according to the layout which I had drawn.
Then I glue in one by one.
I have enough go-bars to press in all the fan brace at once.
Anyway I think I should make some more go-bars...

After sometime all the fan are braced up.
I check and make sure no gaps.
This is very crucial as the bracing directly will affect the sound of the guitar.
Now to wait for it to dry...



Tracing the outline of the plantilla from the template onto the top.


Draw out the bracing layout.

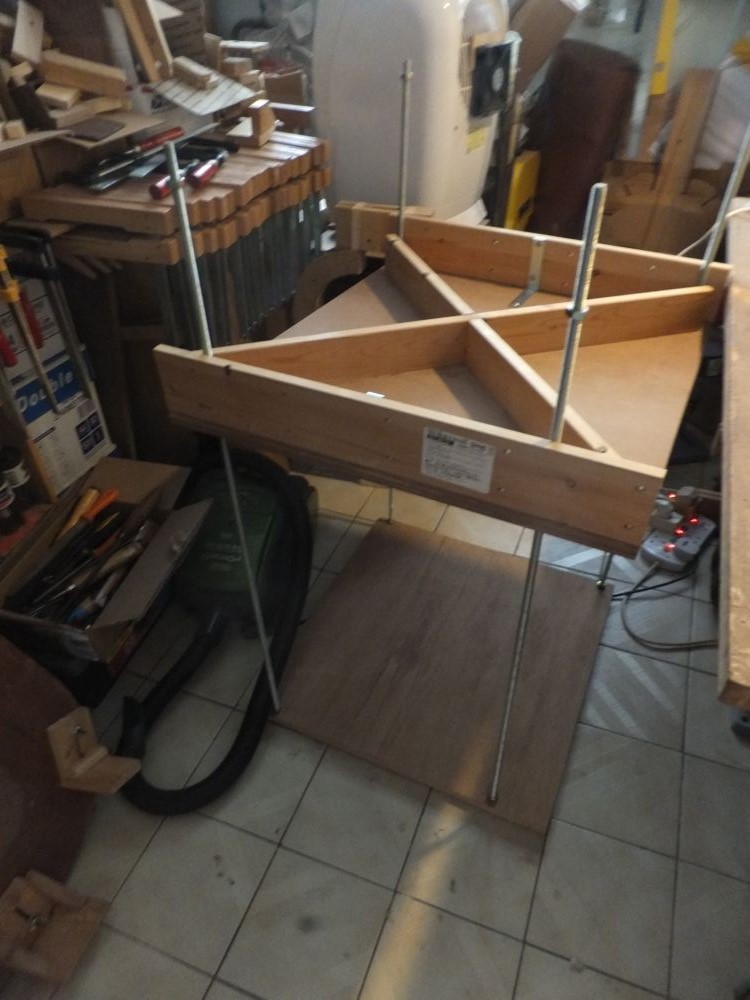

Setting up the go-bar deck.


Now it's ready!


Gluing the donut soundhole reinforcement ring


Apply the go-bars onto the ring


Cut the braces to length.


Bass side done

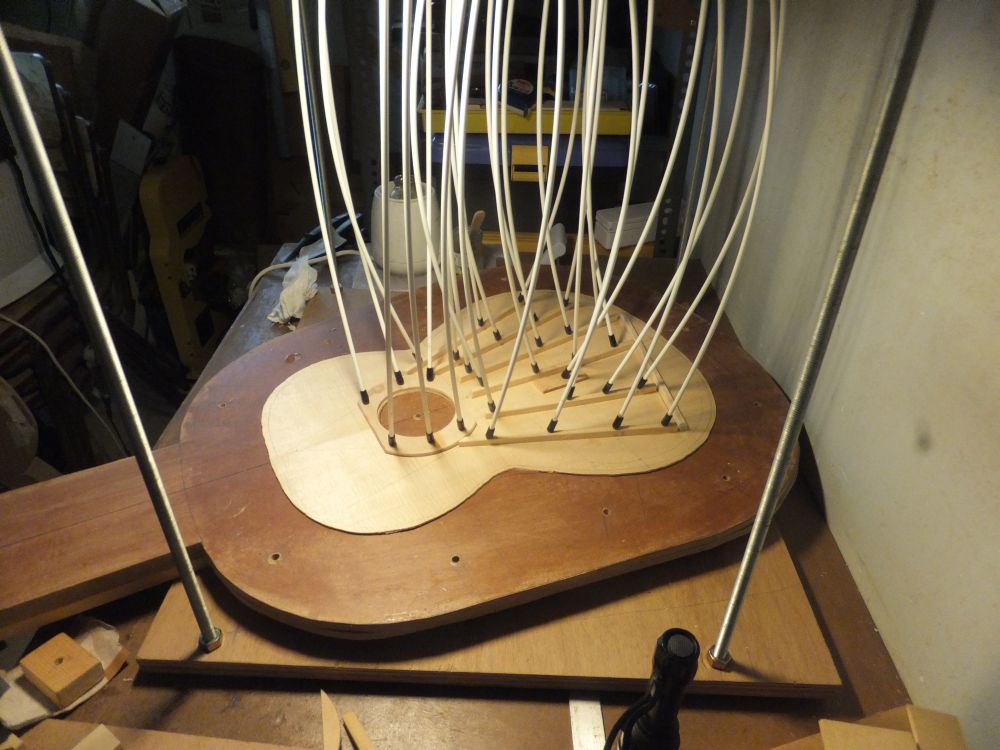

Treble side also done.

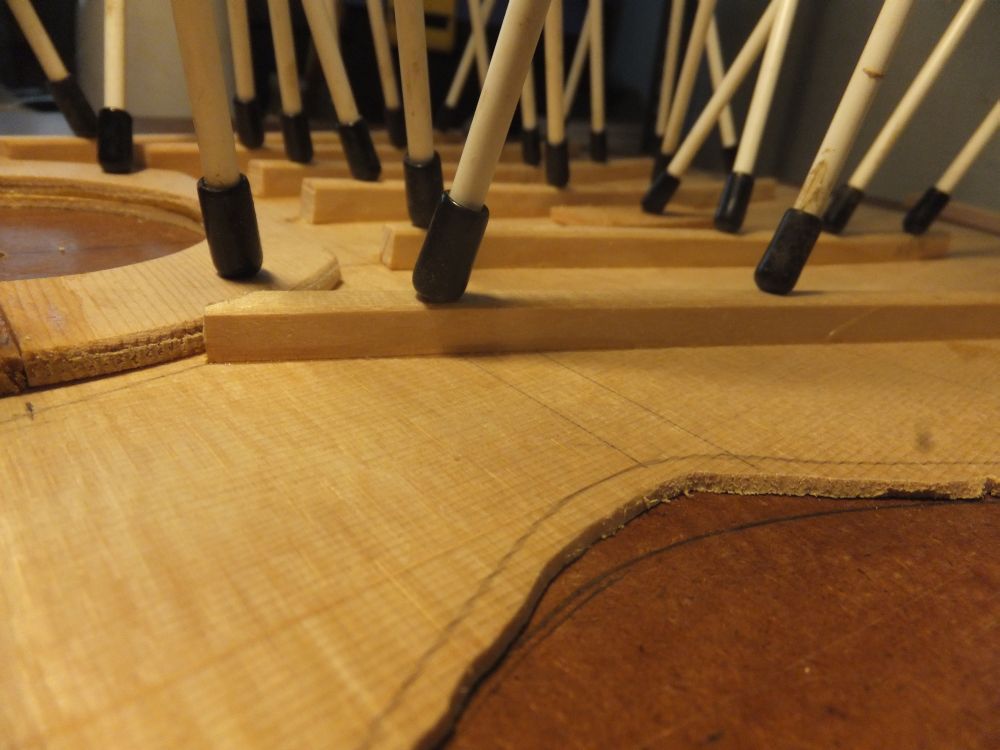

Make sure no gaps!


With the neck


20150722
After the glue dried, I began to shape the bracing.
The process is quite simple also.
First I make reduce the height of the bracing to the predefined height and then make the cross-section profile into triangular shape.
Finally I shape the longitudinal profile to a parabolic at the 2 ends.
After that I also profile the reinforcement ring too.



Shaping the braces with plane


Can see the triangular cross section profile


..using chisel


..with another plane to triangulate the profile.


Shaping the sound hole donut


Can see the profile of the donut


Done.


A look with the traverse brace.


20150724
I continue the brace gluing; this round is the 2 side braces and the end closing brace.
I also marked out the curvature for the bouchet brace.
As it's a massive brace, the method will not be press to make it conform like the smaller fan braces.
Instead the bottom arc will be planed into the Bouchet traverse brace itself.
The tricky part will be fitting over the fan braces.



Prepare to glue


Gluing the side braces and end closing brace


Another view


20150727
After the glue dried I carved the braces.
Also I traced the doming arc onto the Bouchet traverse brace.



After glued dried.


Tracing the doming arch onto the Bouchet brace


Carving the end closing brace.


Braces carved. The weight of top is about 150++g now. After the 2 Traverse brace and Bouchet brace is on, I will try to reduce the overall weight. My guess is that it should be under 200g in total.


20150805
I began to fit the Bouchet brace notches to the fan braces.
The profile can be tricky but with patience it can be done easily.
First I profile the bottom of the brace to the solera doming
After I shoot the base with a block plane and check the fit to the doming.
Then I mark the peak of the triangle of the center brace on the bottom of the Bouchet brace.
I saw a little and chisel a small notch on the bottom of the brace.
Note that the bouchet brace will touch the center brace 1st by virtue of the convex shape.
Thus will do the notches one by one and adjust and deeepn the notches accordingly.
The simple rule is to parr away the wall of the notch which touches the triangle of the fan braces.
Adjust all the notches until the fit is OK.



Shape / shoot the bottom of the Bouchet brace.


Check for fit with the doming.


Saw a small depth for the notch


Use chisel to start a small notch


Check for fit of the notches. Parr away the side of the notch which touches the fan braces.


All fitted nicely.
The 2 stops behind is to help position the Bouchet brace and to hold the dome of the top also.
(一石二鳥 【イッセキニトリ】, Kill 2 Birds with 1 stone)


Another view


Drill the hole for the aperture in the LTB / UTB


Saw away the waste for the UTB / LTB


UTB and LTB cut out nicely. Now need to smooth and shape the UTB / LTB before gluing


20150814
Now to the gluing of the traverse braces.
The hard part of fitting the braces has been done so this is actually quite straightforward.
Except one part which I need to add some extension to the go-bar top part.
When I position the stopper for the Bouchet brace I shifted the solera forward for easier access.
But now the UTB is out of the top deck's range... so I can't possible use go-bar for gluing the UTB.
I tried using cam-clamp but it tends to tilt the braces forward...
So I clamp and extension of the top deck to allows the go-bar and it works like normal.



The Bouchet braces you can see the different direction of the fan braces notches


Bouchet brace glued.


LTB. You can see that the blocks which are glued to the tops are either slanted or curved so that they do not stress on a single grain line on the top.


LTB glued.


Extension of the go-bar top deck for the UTB gluing.


UTB glued.


Between the Bouchet brace and LTB


Between the LTB and UTB


20150819
The braces are carved and sanded.
After that I weigh the top is about 196.5g heavier than my #3 but still within reasonable variation limits.
I did some frequency analysis too, but it's off my reference seems like I need to remove a bit more of the brace's height.



After removing the go-bars


Carving the Bouchet traverse brace


Bouchet brace carved


Carving the UTB and LTB


Weight of top 196.5g


Checking the side rim fitting to the top.


20150903
I am preparing for the next stage.
Right now the top is tuned and sides are ready.
Here's some pics of the assembly preview.



Top on the side mould.


Neck on the top.
